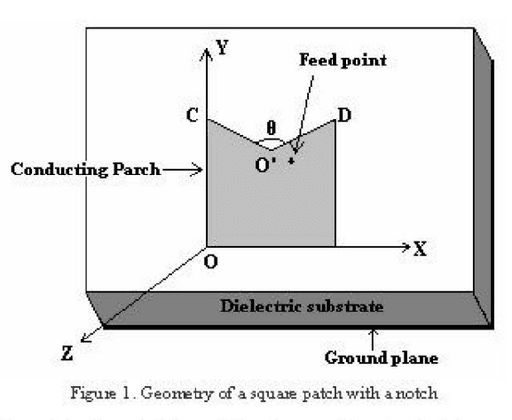

This paper presents the design and simulation of a dual-frequency antenna with a notch feature on an FR4 substrate, developed for wireless communication applications. The notch is integrated into the antenna’s design to enhance its radiation properties and bandwidth, allowing for more precise control of resonant frequencies. The antenna is constructed using glass epoxy material, chosen for its dielectric properties and mechanical durability, with a compact form factor suitable for modern devices like smartphones, tablets, and other portable electronics.
The performance of the antenna was evaluated using simulation tools like CST Microwave Studio and HFSS. These simulations revealed that the notch angle has a significant influence on the antenna’s resonant frequencies and bandwidth. By adjusting the notch angle, the antenna’s dual-frequency performance was optimized, showing good impedance matching and stable radiation patterns at both operating frequencies. The design’s efficiency makes it an ideal candidate for wireless applications such as Wi-Fi, Bluetooth, and LTE.
Key Findings:
Notch Angle Impact: The notch feature effectively controls the resonant frequencies and bandwidth, allowing for tunable performance by varying the angle of the notch.

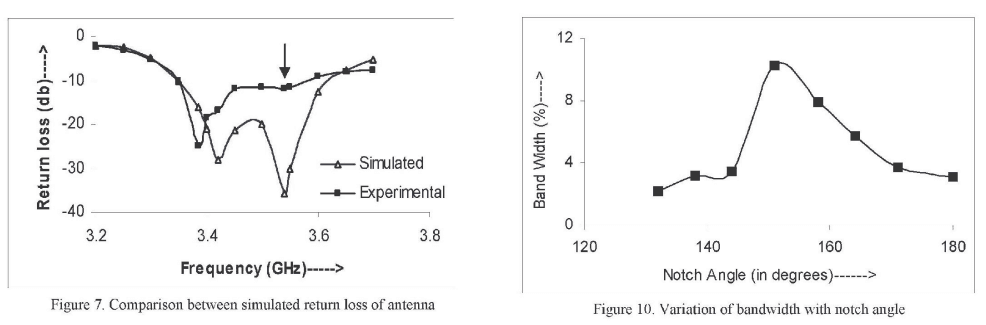

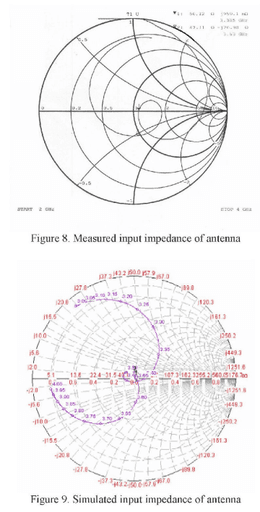

Broadband Performance: The antenna demonstrated enhanced bandwidth, with return loss values below -10 dB at both frequency bands, indicating excellent impedance matching.
Material Selection: The use of FR4 (glass epoxy) provided a cost-effective solution without compromising performance. Its dielectric constant and thickness were critical in achieving efficient radiation properties.
Compact Size: The small size of the antenna makes it ideal for space-constrained devices, providing a dual-frequency operation that can support multiple communication protocols.
Stable Radiation Patterns: The antenna showed stable radiation patterns across both frequency bands, with an average gain of 3-5 dB, ensuring efficient signal transmission.
Practical Applications: The antenna is suitable for various wireless communication systems, including Wi-Fi, Bluetooth, and LTE, making it highly adaptable for use in modern consumer electronics.
