Abstract

This research paper presents the design, simulation, and analysis of a dual-frequency antenna with a notch on an FR4 substrate for wireless communication applications. The design introduces a unique notch feature that enhances the radiation properties and bandwidth of the antenna. Simulations were conducted to observe how variations in the notch angle influenced the resonant frequencies and bandwidth. The antenna, fabricated using glass epoxy material with specific dielectric constants and thickness, demonstrates efficient performance, making it suitable for compact wireless communication devices. The results highlight the impact of geometry and material selection on antenna performance, with a focus on optimizing radiation characteristics and bandwidth for practical applications.

1. Introduction

The rapid growth in wireless communication systems necessitates the development of antennas that are compact, efficient, and capable of operating across multiple frequency bands. Dual-frequency antennas are particularly useful in this context as they can support various communication standards without requiring multiple antennas. A key challenge in designing such antennas is to optimize their bandwidth and radiation properties, while maintaining a small footprint.

In this paper, we present the design of a dual-frequency antenna with a notch feature on an FR4 substrate. FR4 is widely used in antenna design due to its favorable mechanical and electrical properties, but achieving optimal performance on this material requires careful consideration of geometry and material characteristics. The notch, a unique aspect of the design, plays a crucial role in controlling the resonant frequencies and bandwidth, making the antenna highly suitable for wireless communication applications.

2. Literature Review

Antenna design has evolved significantly, with various materials and structures being explored to meet the ever-increasing demand for high-performance wireless systems. Dual-frequency antennas have garnered attention due to their ability to support multiple communication protocols, such as Wi-Fi, Bluetooth, and LTE, without needing additional hardware.

Previous studies have focused on enhancing the bandwidth and radiation efficiency of antennas by modifying their geometry or introducing new materials. FR4 has been a popular choice due to its availability and ease of fabrication. However, optimizing antenna performance on FR4 substrates requires careful design considerations, particularly concerning the substrate's dielectric constant and thickness.

Several recent designs incorporate slots, notches, or fractal structures to improve bandwidth. However, the incorporation of a notch specifically tailored to adjust the resonant frequency and bandwidth, as discussed in this paper, offers a new approach that builds upon these foundational studies.

3. Antenna Design: Dual-Frequency Antenna with Notch

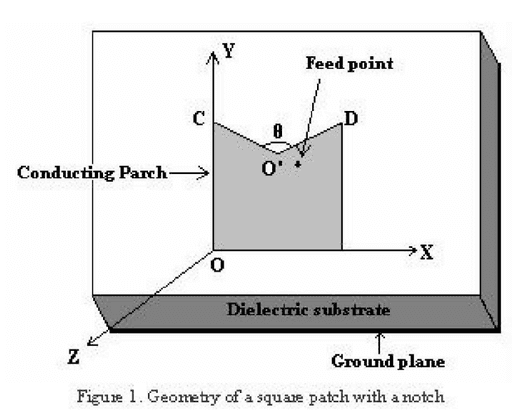

The primary contribution of this paper is the design of a compact dual-frequency antenna with a notch on an FR4 substrate. The antenna's geometry consists of a rectangular patch with a centrally placed notch, which significantly influences the radiation characteristics and resonant frequencies.
